24 vs. 24 – Canon 24mm TS-E II vs. Nikon 24mm PC-E

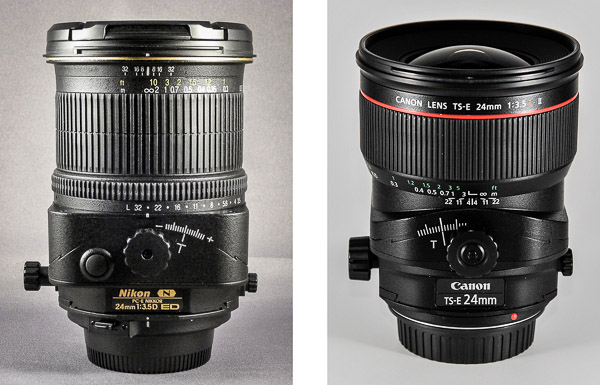

PC lenses-pair-60070

PC (perspective correction) lenses, also known as Shift or Tilt/Shift lenses, are used in architectural photography to mimic the capability of a large format bellows camera to render tall buildings standing straight instead of tilting backwards.

The PC lens accomplishes this by producing an image circle that is so large, the lens optics can be shifted relative to the camera sensor. This allows the lens to “see” the top of the building without the need to tilt the camera upwards–almost like a periscope. Since the camera and subject remain parallel, the building appears to be standing straight up.

These lenses are far from perfect, in part because even with a large image circle, image quality is highest at the center of the circle, and shifting the lens means moving away from the center. There are other issues as as well, but that’s the short summary.

Despite what has been written, PC (aka TS) lenses are extremely simple to use if you take just a few minutes to see how they operate. Don’t let those knobs frighten you; the lenses above have knobs for shifting but there are knobs for tilting as well. Tilting is used to control depth of field, but in practice 24mm lenses have so much depth of field it’s rarely necessary to tilt–so half of what these lenses do is stuff you don’t need to worry about!

_DSC7771-60070

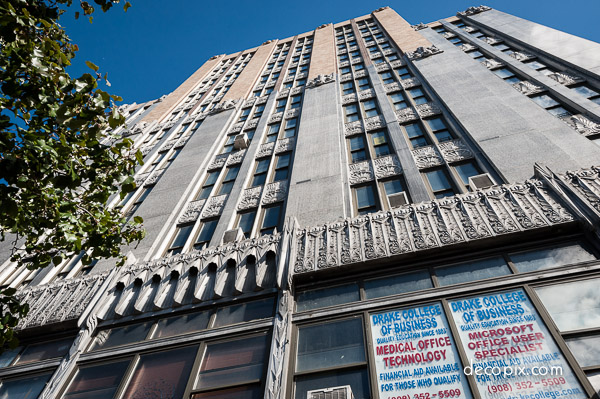

Hersh Tower – Paterson, New Jersey. I like this photo more than the one below, but this shot doesn’t give any idea of the site or it’s relationship to other structures.

3K3C1543-60070

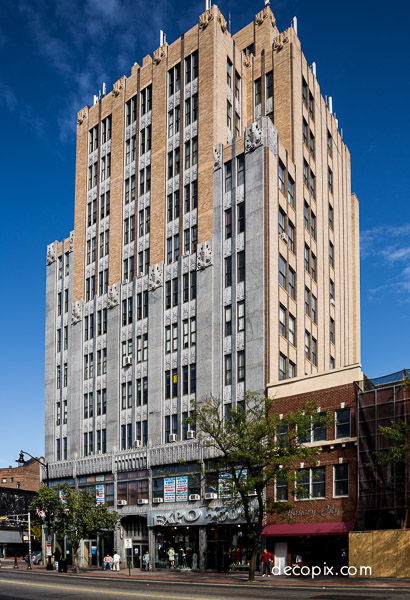

Using a shift lens, we see Hersh Tower really is a tower, compared to its neighbors. The darkened corners at the top are caused by reduced light transmission which is the result of the lens shift.

I’m going to pause a moment to remember a trusted old friend. You would think the best PC lens would come from Nikon or Canon. But for years, that wasn’t the case. By a considerable margin, the Olympus 24 shift was the champ. Olympus 24 shift lenses that have been converted to Nikon mount still turn up frequently. Unfortunately, they’re not nearly as good on digital as they were on film.

IMG_2462-60070

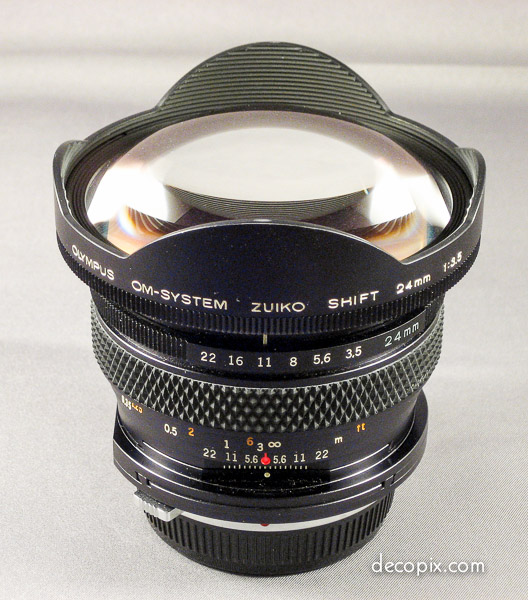

Gone but not forgotten. The Olympus 24 shift. Very sharp, relatively small and light. No knobs to fiddle with; nothing lock or unlock. Just slide the front of the lens in the direction you want. You can look into the front element and it will tell your fortune. But unfortunately, it’s not great on full frame digital cameras.

PC Lenses:  My Story

I was a latecomer to serious digital photography. I’d owned digital point and shoot cameras, but having finally found a great PC lens for use with film cameras (the excellent Olympus 24 Shift) I decided to hold off buying a full frame digital SLR until somebody introduced a PC lens expressly designed for digital cameras.

Nikon was first, with their 24mm PC-E, several months before Canon’s 24mm TS-II (there was an earlier 24mm TS type #1 but it was from the film era and not great.)

Reviews of the Nikon 24 PC-E were raves but anecdotal; people said “I don’t have anything to compare it to, but it’s great” or  “Considering what it costs I’m sure it’s great”. A few examples were posted but as with most things on the web there was really no way to critically judge the lens’ performance, especially sharpness in the corners when fully shifted.

So I bought a 24 PC-E. And it turned out that when fully shifted, the Nikon 24 PC-E was, to be charitable, not great in the corners. I bought a second one. Same thing. It’s true that many architectural photographs have nothing in the corners but sky but this isn’t always the case. And even if there is nothing but sky in the upper corners of your picture, should you accept mediocre corner sharpness? Check the price tag on these lenses and my guess is you’ll say no.

Then came Canon’s 24mm TS-E II. This time, the anecdotal reviewers said “I’m sure the Canon lens is good but I don’t see how it could be better than the Nikon.” I figured this was probably true. The last thing I needed was to buy an another lens and another camera system but I figured I’d come this far, what the hell.

Now, I have no axe to grind here. And I frankly prefer the Nikon body with it’s lower noise and higher dynamic range vs. the Canon 5D III. But Canon’s 24 TS-E II is the better lens. Both lenses are extremely good when not shifted and both show a loss of quality when you shift. But you can shift the Canon further before the image quality deteriorates too much.

To be absolutely clear: both these lenses give up considerable amounts of quality when fully shifted–no miracles here. The more you shift, the more you lose. Dig deep enough into the reviews of these lenses and somewhere they will mention this crucial piece of information, if only in passing.

If at all possible, try to shift the lens less than maximum amount.

I thought about posting comparison shots but since my Nikon is 12 megapixels and my Canon is 22mp, I’d rather not get into an argument with some engineer about pixel density. In any event, you probably own one camera system or the other so this may not matter much to you. But for what it’s worth, I’ve made a 24 comparison chart.

In summary, I would have been a lot happier (and richer) if the 24 PC-E was a better performer but I felt somewhat vindicated when Roger at Lens Rentals left it off his list of recommended lenses for the Nikon D800. There’s a lesson here for brand fanatics. Lake Wobegon is the only place where everything is above average. Every brand has strengths and weaknesses.

In a perfect world we would have the Canon 17 TS-E and 24 TS-E II in Nikon mount and the Nikon 14-24 in Canon mount. And all lenses would be above average.

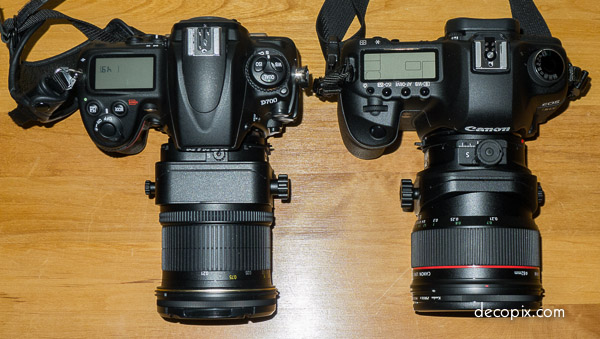

P1000195-60070

For more information:

[easyazon_infoblock align=”center” identifier=”B0013BEEUW” locale=”US” tag=”decopix-20″] [easyazon_infoblock align=”center” identifier=”B001TDL2O0″ locale=”US” tag=”decopix-20″]





This entry was posted in Photo Equipment Tests & Tips and tagged , , , . Bookmark the permalink.

9 Responses to 24 vs. 24 – Canon 24mm TS-E II vs. Nikon 24mm PC-E

  1. mark says:

    Did you ever get a chance to test the Zuiko 24 with an adapter ?

    1. Randy Juster says:

      Hi Mark – I did try the Zuiko 24 shift on a Canon 5D (the original 5D) with one of those nice Japanese adapters made by Kindai, and the corners were pretty soft. So I sold the Olympus 24 and bought a Nikon D700 with the Nikon 24 PC-E. This combination was disappointing as well. Finally, after trying two of the 24 PC-E lenses I gave the Canon 24 TS II a try and while it’s not perfect, it’s considerably better than anything else that’s 24mm and shifts.

  2. mark walsh says:

    A very fair and balanced review. Right on the money. I was considering getting the Nikon 24 PCE for architectural interiors but i tried it [on d800e] and was underwhelmed. Then hired the Canon 24 and it is defiantly better. On a side note I do own the Nikon 45 PCE and am very impressed by it. As a general lens it a very sharp and precise tool, although as you say, it’s not wise to shift or swing too far. Perfect for landscapes, especially when stitching two frames to get super high res. My personal favorite shift setup: the Cambo wide 65 with Schneider super angulon 65mm f5.6.

    1. Randy Juster says:

      Thanks, Mark. For shifting, you can’t beat a 5.6 Super-Angulon, especially if you have the center filter. I had an original Cambo Wide with a 47/5.6 and a 6×12 back. The little 47mm didn’t quite cover 4×5 but it was fine for 6×12. Eventually, I decided the 47 Super-Anglulon was too wide, but I’m still impressed that a 47mm came close to covering 4×5.

  3. Eva says:

    Hi!
    Is the difference enough to switch systems? (Paired with the fact I like Canons colors better.)
    – Eva

    1. Randy Juster says:

      Hi Eva – The difference was enough for me to switch (although I prefer Nikon colors-ha!) but I guess it depends on how often you use a PC lens. If it’s something you can live without, I’d stick with Nikon and just skip the 24 PC-E. OTOH, if it’s a lens you plan to use every day, the Canon 24TS-II really is better and their 17mm TS lens is outstanding also. You might try renting a 24TS-II and a Canon body. Nikon cameras are noticeably better in low light/high ISOs and that might be more important to you.

  4. Nicolas Jimenez says:

    Hi Randy,
    Thank you for objective comments and for brand neutrality -not very common indeed!
    Wondering if you have had a chance to work with Schneider’s PC-TS Super-Angulon 28mm f/4.5…?
    Thank you!

    1. Randy Juster says:

      Thanks, Nicolas. Maybe it’s because I worked in the industry but I’m not a fan of camera brands or companies. All the major companies have great lenses and not so great lenses. Insisting one brand is superior across the board is like buying a TV set and watching just one channel. I haven’t tried the Schneider 28mm PC-TS. Years ago, I tried the original Schneider 28PC (on film) and it was pretty good. That was so long ago that I’m sure they’ve made improvements since then.

  5. Thank you for the review, Randy!
    I’ve gone another compromise route by combining the Canon wide-angle TS-Es with the Sony a7R II camera. I’ve already owned the Canon lenses, but switched over to the Nikon system for other non-architectural photography work.
    With this combination, I’m combining the Sony sensor quality (Nikon cameras mostly use Sony sensors) with the pretty good TS-Es. Obviously, it’s not a cheaper option and you have to get used to Sony and adapter handling, but it’s ok for mostly tripod work.
